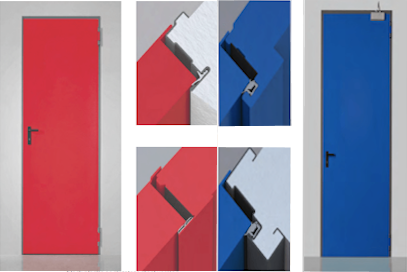

FIREDOORS

Univer  |  Proget

Fire resistant doors, temperature and / or smoke for interior layout with insulating pack made of mineral wool with different frames and accessories according to the type of use and application.

Univer

Metal fire door, fully galvanized and painted over in RAL colors, frame on four sides making it reversible for right or left opening.

Certified and approved in the following classifications for fixing with brackets or bolts:

  • E 60 standard EN 1634-1, single leaf
  • EI2 60 standard EN 1634-1, single or double leaf
  • EI2 90 standard EN 1634-1, single or double leaf
  • REI 120 standard UNI 9723, single or double leaf

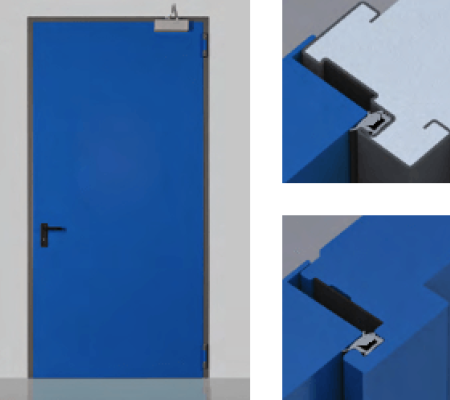

Proget

Metal fire door, fully galvanized and painted in RAL colors, considerably robust frame is ideal for large-sized doors or for installation on weaker walls. Certified and approved in the following categories, for application on masonry and drywall, attachment with anchoring clips - screwplugs - subframes:

  • EI2 60 standard EN 1634-1, single or double leaf
  • EI2 90 standard EN 1634-1, double leaf
  • EI2 120 standard EN 1634-1, single leaf
  • REI 60 standard UNI 9723, single or double leaf
  • REI 120 standard UNI 9723, single or double leaf

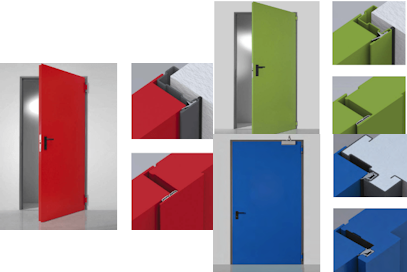

PORTAS MULTIUSO

Univer  |  Proget  |  Rever

Doors for internal and external use with environmental characteristics, internal filler made of honey-comb or rockwool available with different accessories and frames.

Univer

Metal wicket door, fully galvanized and painted in RAL colors; hollow core with mineral fiber panel for heightened thermal and/or acoustic insulation; 4-sided frame makes the door reversible for right- or left-hand opening.

Univer multipurpose comes complete with latch mechanism and handle and spring-loaded hinges for self-closing and is available in single- and double-leaf versions.

Proget

Metal wicket door, particularly robust, fully galvanized and painted in RAL colors; honeycombed with mineral fiber panel for greater thermal and/or acoustic insulation; particularly robust frame ideal for larger doors or for installation on weaker walls.

Proget multipurpose comes complete with latch mechanism, handle and spring-loaded hinges for self-closing, and the secondary leaf of the double-leaf version includes a self-locking system.

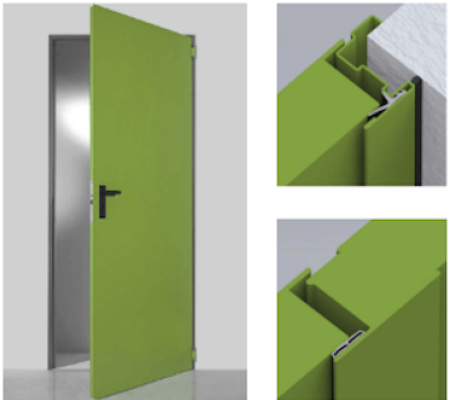

Rever

Metal wicket door, fully galvanized and painted in RAL colors; hollow core with honeycomb fiber structure; the four-sided frame makes the door reversible for right or left hand opening.

Rever comes complete with latch mechanism and handle and is available in single- and double-leaf versions.

.

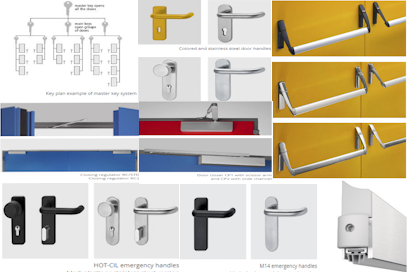

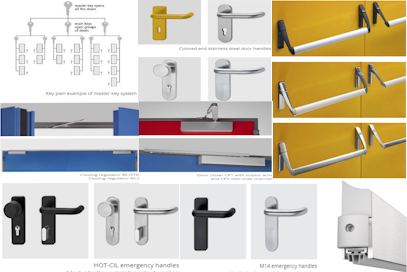

ACESSORIOS

Special handles

Rever, Univer and Proget doors may be equipped on request with handles with special functions other than those provided by standard handles.

  • colored handles
  • stainless steel handles
  • door knobs
  • blind cover plates
  • cover plates without cylinder hole
  • wc style handles

Cylinders

On request Rever, Univer and Proget doors with standard locks (Std 015), MAC2 system control access locks or three-point locking mechanisms (3vie PRO) may be supplied with a Euro profile cylinder with three keys.

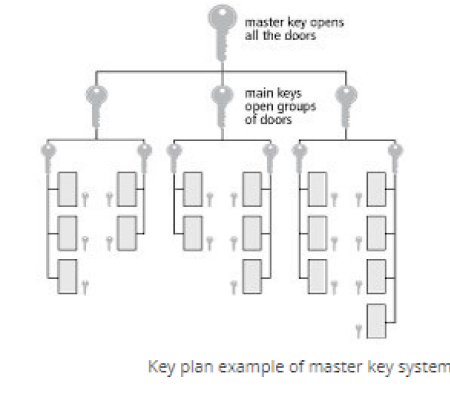

They may also be provided in unique coding or group coded versions, or in combination with unique or group mastering.

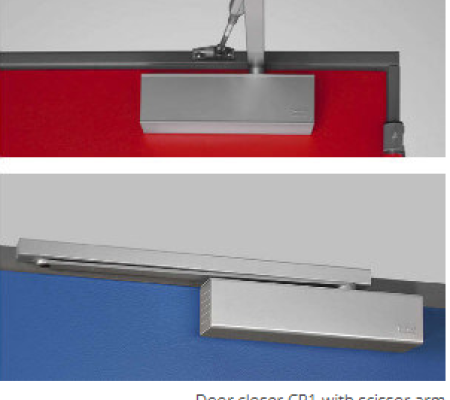

Door closers

The door closer regulates the closure of the door so that the door leaf returns properly to its final closed position after being released.
Regulation is influenced by closure force, speed and the final impact.

Type door closers:

  • CP1 with a scissor arm marked CE conformity EN 1154
  • CP2 with slide channel , marked CE conformity EN 1154
  • CP2-EMF with slide channel and electro-mechanical hold, marked CE conformity EN 1154 ed EN 1155

Closing regulators

Closing regulators administer the closure of two-leaved doors so that the inactive leaf is overlaid on the active leaf upon final closure.

Type Closing regulators:

  • standard RC/STD marked CE conformity EN 1158
  • system RC2: marked CE conformity EN 1154 ed EN 1158
  • system RC2-EMF1: marked CE conformity EN 1154, EN 1158 ed EN 1155

Automatic door sweep

On request, Rever, Univer and Proget doors are available with an automatic door sweep to prevent air drafts from entering through the crack between the leaf and the floor.

EMERGENCY HANDLES AND PANIC BARS

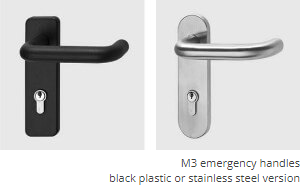

M3 emergency handle

The M3 emergency exit handle is to be applied on doors designated for emergency situations involving people who are accustomed to using safety exits and their hardware, and who are therefore unlikely to be in a state of panic.
With the lock locked by key, the door can no longer be opened from the pull side, while the door can still be opened using the lever on the push side.

HOT-CIL emergency handle

The HOT-CIL emergency exit handle is to be applied on doors designated for emergency situations in which the people involved are accustomed to using safety exits and their opening devices, and who are therefore very unlikely to be in a state of panic.
The door can be opened from the push side by key only, while it can be opened at any time from the pull side by pressing the handle, even when the lock is locked using the key. The lock has two bolts that protrude when the key or the thumbturn latch is turned.

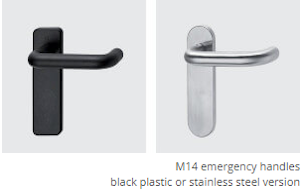

M14 emergency handle

The M14 emergency exit handle is to be applied to the inactive leaf of two-leaved doors designated for emergency situations in which the people involved are accustomed to using safety exits and their opening devices, and who are therefore highly unlikely to be in a state of panic.
From the push side, opening is possible at any time by pushing on the handle, which causes the vertical rods to retract and at the same time pulls back the bolt of the active leaf's lock, unlatching both doors.

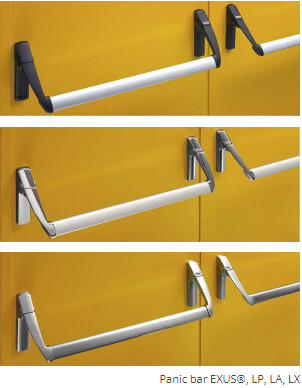

EXUS® panic bars

  • Newly designed product with state of the art technological concept
  • Available several in color and surface combinations: brushed stainless steel for the lever arms and the bar, or aluminum with polished chrome lever arms and anodized aluminum bar, and finally the classic ever-green combination - black plastic lever arms with anodized aluminum bar
  • Certified for internal lock with 40 or 65mm entrances for single leaves or active leaves, with 30 or 80mm entrance for inactive leaves and with square spindle rotation of up to 45°
  • Possibility of locking by key on the bar side as well
  • Reversible for Right or Left mounting
  • Proposed together with the door or separately in a complete KIT packaged in a black/yellow box
  • Label applied to the packaging to identify the product's characteristics
  • Wide range of customizations: colored bar, colored or stainless steel handles, lock with access control mechanisms, special coded or mastered cylinders
  • Suited for one-leaved doors or the active and inactive leaves of two-leaved doors with dimensions up to 1350x2880mm/leaf, mass up to 300kg/leaf.

SLASH panic bar

  • Panic bar that stands out from the others due to its particular design and the rounded shapes of the carters. This characteristic not only improves aesthetic appeal, but it also eliminates any risk of injury during use
  • Available in different color and surface combinations, in brushed stainless steel for the cover carters and the bar, or with polished chromed aluminum carters and anodized aluminum bar, and then there is always the classic combination that is still in fashion - black plastic carters with anodized aluminum bar
  • Certified for internal locks with a 65mm entrance for single leaves or active leaves, and with an 80mm entrance for inactive leaves
  • Reversible for Right or Left mounting
  • Proposed together with the door or separately in a complete KIT packaged in a single black/orange box
  • Label applied to the packaging to identify the product's characteristics
  • Wide range of customizations: colored bar, colored or stainless steel handles, lock with access control mechanisms, special encrypted or mastered cylinders
  • Suited for one-leaved doors or the active and inactive leaves of two-leaved doors with dimensions up to 1350x2880mm/leaf, mass up to 300kg/leaf

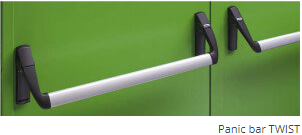

TWIST panic bar

  • The classic line of panic bars, an ever-green, available in the standard combination with black plastic arms/caps and anodized aluminum bar
  • Certified for internal locks with a 65mm entrance for single leaves or active leaves, and with an 80mm entrance for inactive leaves
  • Reversible for mounting on Right or Left doors
  • Proposed together with the door or separately in a complete KIT packaged in a single black/green box
  • Packaging is labeled to identify product characteristics
  • Wide range of customizations: colored bar, colored or stainless steel handles, locks with access control systems, special coded or mastered cylinders
  • Suited for one-leaved doors or the active and inactive leaves of two-leaved doors with dimensions up to 1350x2880mm/leaf, mass up to 300kg/leaf.

A instalação tem obrigatoriamente de ser efectuada por pessoa devidamente habilitada e certificada para o efeito, conforme Lei em vigor.
